TIA Portal Tag Integration Explained
INTRO
TIA Portal tag integration allows engineers to connect PLC logic, hardware configuration, and HMI systems efficiently. It ensures that all parts of the automation project stay consistent.
In this guide, you will learn how to link PLC tags with hardware and HMI screens using built-in TIA Portal features.
🧠 TIA PORTAL TAG INTEGRATION OVERVIEW
TIA Portal integrates different editors into a single engineering environment. Engineers can connect PLC tags directly to hardware and visualization elements.
For example, a tag defined in the program can be used instantly in hardware configuration and HMI screens. As a result, project consistency improves.
⚙️ HARDWARE AND PROGRAM EDITOR CONNECTION
The hardware and program editors work together in TIA Portal. Engineers can assign symbolic names directly to inputs and outputs.
For instance, when you configure a digital input, you can immediately link it to a PLC tag. Therefore, hardware and logic remain synchronized.
🔧 AUTOMATIC TAG MANAGEMENT
TIA Portal automatically updates tag tables across the project. When a tag changes in one place, the system applies the update everywhere.
Because of this, engineers reduce errors and save time during development.
🔄 HMI INTEGRATION WITH WINCC
TIA Portal allows direct integration between PLC and HMI systems. Engineers can drag PLC tags onto HMI screens to create input and output fields.
For example, dragging a tag onto a screen automatically generates a display or control element. As a result, HMI development becomes faster and easier.
🌐 AUTOMATIC NETWORK CONFIGURATION
When connecting PLC and HMI devices, TIA Portal automatically creates communication links. Engineers do not need to configure everything manually.
Therefore, system setup becomes more efficient and less error-prone.
🔍 TAG CROSS-REFERENCES

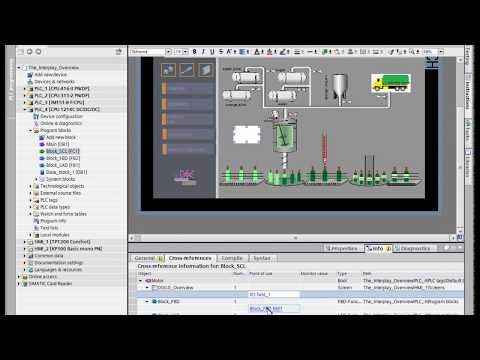

TIA Portal provides cross-reference tools for tags. Engineers can see where each tag is used across the project.
This feature helps during troubleshooting and system maintenance. In addition, it improves project transparency.
🌍 WHY TAG INTEGRATION IS IMPORTANT
Understanding TIA Portal tag integration is important because it connects all engineering tasks. Without it, projects become complex and harder to manage.
Therefore, using integrated workflows helps engineers build scalable and reliable automation systems.
🏭 REAL APPLICATIONS
Engineers use tag integration in many automation projects. For example:
- PLC and HMI communication
- Hardware configuration
- Process visualization
- System diagnostics
In addition, it improves development speed and reduces engineering effort.
🔗 RELATED TOPICS
✅ CONCLUSION
TIA Portal tag integration is a powerful feature that connects PLC logic, hardware, and HMI systems. By understanding this workflow, you can develop automation projects more efficiently.
Over time, this knowledge helps you reduce errors and improve system design.
